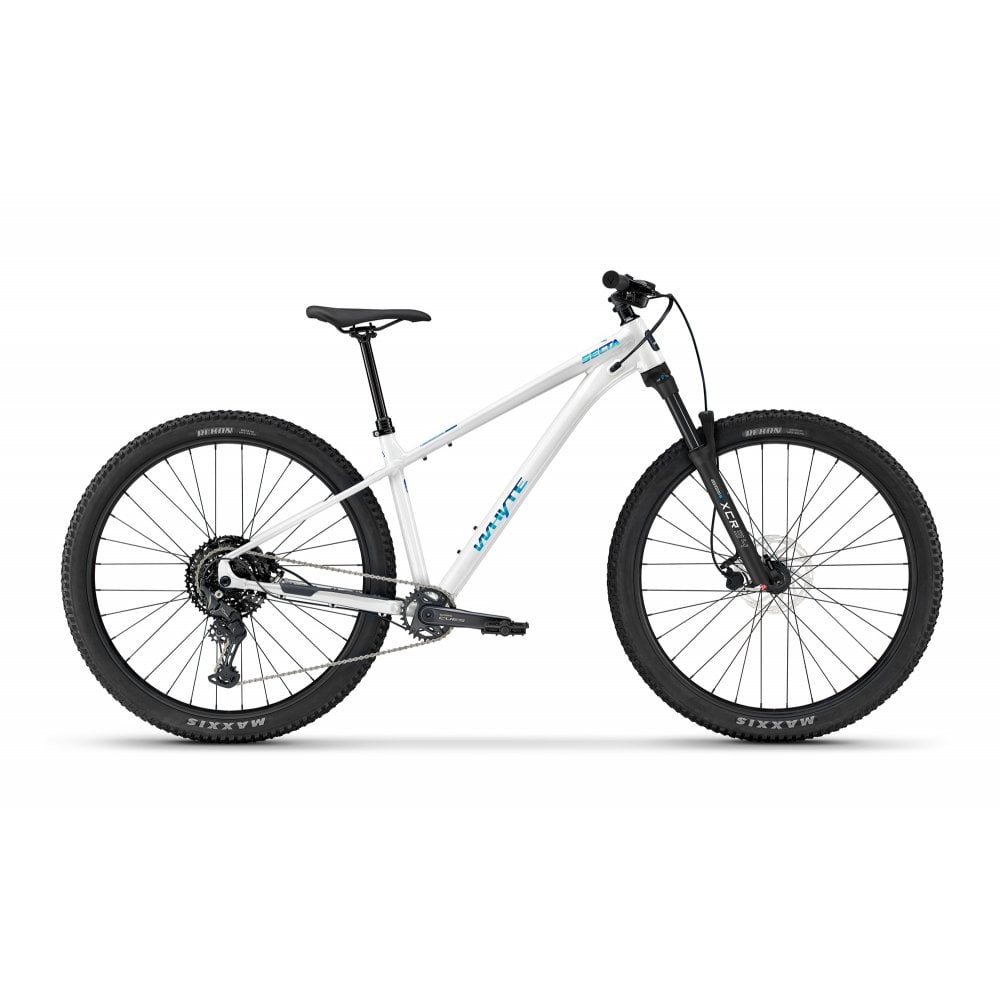

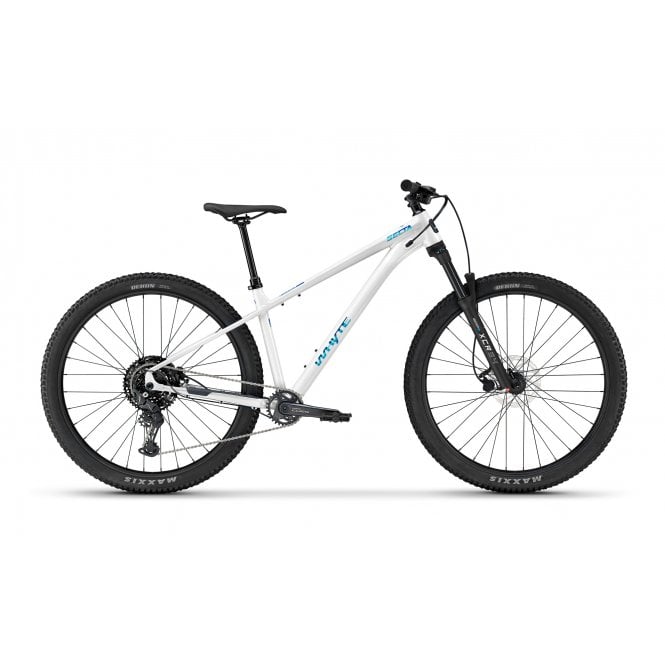

Get set to get mountain biking
However you ride, Whyte Secta R is ready to help you ride your best – right from the shop floor.
With the same frame as our critically praised Whyte Secta RS, the Whyte Secta R is designed to help unlock your riding in a fun, confidence-inspiring and high-value package. Its fully-featured frame, specially curated components – including a dropper seat post to give you maximum confidence on descents (letting you lower and raise the saddle as your ride at the touch of button) – and enabling handling all combine to deliver you the best mountain bike trail performance and price possible.
All so you can have maximum fun on the trail – and more money in your pocket.
Highlights
- Fully featured 6061 T6 precision formed aluminium frame.
- 130mm Suntour XCR 34 suspension fork.
- TransX full-insertion dropper post (with frame size-specific drop).
- Capable, smooth-rolling 29er wheels + Maxxis tyres.
- Shimano Cues 1x9 transmission (30T chainring x 11-46 cassette).
- Tektro two-piston hydraulic disc brakes (180mm rotors front + rear).
Code:
Electric Bikes
| WSECR1SV1-1 | Frame | 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. |
|---|---|---|
| WSECR1SV1-1 | Frame Size | Small |
| WSECR1SV1-1 | Fork | SR Suntour XCR 34 29in, 130mm travel, 44mm offset, black stanchions, air spring, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost thru axle |
| WSECR1SV1-1 | Headset | ZS44 upper, ZS56 lower, 1 1/2in Lower and 1 1/8in upper caged bearings |
| WSECR1SV1-1 | Handlebar | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| WSECR1SV1-1 | Stem | Whyte alloy, 35mm extension, 31.8mm bar bore |
| WSECR1SV1-1 | Grips | Whyte Trail lock-on |
| WSECR1SV1-1 | Gear Shifters | Shimano CUES U4000, 9 speed, Band On clamp |
| WSECR1SV1-1 | Rear Derailleur | Shimano CUES U4000, 9 speed |
| WSECR1SV1-1 | Chain | KMC XGlide, 116 links |
| WSECR1SV1-1 | Cassette/Freewheel | Shimano LG300, 11-48T, 9 speed |
| WSECR1SV1-1 | Chainset | Shimano CUES U4000, 30T chainring, 170mm, 9 speed, 52mm chainline, three-piece crankset |
| WSECR1SV1-1 | Number of Gears | 9 |
| WSECR1SV1-1 | Bottom Bracket | Shimano BB-UN101, square taper, 122.5mm |
| WSECR1SV1-1 | Pedals | Fibre reinforced composite platform |
| WSECR1SV1-1 | Brakes | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| WSECR1SV1-1 | Brake Levers | Tektro M285 |
| WSECR1SV1-1 | Front Hub | Alloy, 15mm x 110mm Boost spacing, 32 hole |
| WSECR1SV1-1 | Rear Hub | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub |
| WSECR1SV1-1 | Rims | Pinned joint, 30mm internal width, tubeless ready, 32 hole |
| WSECR1SV1-1 | Tyres | Maxxis Rekon 29in x 2.4in front and rear |
| WSECR1SV1-1 | Saddle | Whyte Custom |
| WSECR1SV1-1 | Seat Post | TransX size specific dropper post, 30.9mm (size S-M 150mm travel; sizes LG-XL 170mm travel) |
| WSECR2MV1-1 | Frame | 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. |
| WSECR2MV1-1 | Frame Size | Medium |
| WSECR2MV1-1 | Fork | SR Suntour XCR 34 29in, 130mm travel, 44mm offset, black stanchions, air spring, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost thru axle |
| WSECR2MV1-1 | Headset | ZS44 upper, ZS56 lower, 1 1/2in Lower and 1 1/8in upper caged bearings |
| WSECR2MV1-1 | Handlebar | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| WSECR2MV1-1 | Stem | Whyte alloy, 35mm extension, 31.8mm bar bore |
| WSECR2MV1-1 | Grips | Whyte Trail lock-on |
| WSECR2MV1-1 | Gear Shifters | Shimano CUES U4000, 9 speed, Band On clamp |
| WSECR2MV1-1 | Rear Derailleur | Shimano CUES U4000, 9 speed |
| WSECR2MV1-1 | Chain | KMC XGlide, 116 links |
| WSECR2MV1-1 | Cassette/Freewheel | Shimano LG300, 11-48T, 9 speed |
| WSECR2MV1-1 | Chainset | Shimano CUES U4000, 30T chainring, 170mm, 9 speed, 52mm chainline, three-piece crankset |
| WSECR2MV1-1 | Number of Gears | 9 |
| WSECR2MV1-1 | Bottom Bracket | Shimano BB-UN101, square taper, 122.5mm |
| WSECR2MV1-1 | Pedals | Fibre reinforced composite platform |
| WSECR2MV1-1 | Brakes | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| WSECR2MV1-1 | Brake Levers | Tektro M285 |
| WSECR2MV1-1 | Front Hub | Alloy, 15mm x 110mm Boost spacing, 32 hole |
| WSECR2MV1-1 | Rear Hub | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub |
| WSECR2MV1-1 | Rims | Pinned joint, 30mm internal width, tubeless ready, 32 hole |
| WSECR2MV1-1 | Tyres | Maxxis Rekon 29in x 2.4in front and rear |
| WSECR2MV1-1 | Saddle | Whyte Custom |
| WSECR2MV1-1 | Seat Post | TransX size specific dropper post, 30.9mm (size S-M 150mm travel; sizes LG-XL 170mm travel) |
| WSECR3LV1-1 | Frame | 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. |
| WSECR3LV1-1 | Frame Size | Large |
| WSECR3LV1-1 | Fork | SR Suntour XCR 34 29in, 130mm travel, 44mm offset, black stanchions, air spring, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost thru axle |
| WSECR3LV1-1 | Headset | ZS44 upper, ZS56 lower, 1 1/2in Lower and 1 1/8in upper caged bearings |
| WSECR3LV1-1 | Handlebar | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| WSECR3LV1-1 | Stem | Whyte alloy, 35mm extension, 31.8mm bar bore |
| WSECR3LV1-1 | Grips | Whyte Trail lock-on |
| WSECR3LV1-1 | Gear Shifters | Shimano CUES U4000, 9 speed, Band On clamp |
| WSECR3LV1-1 | Rear Derailleur | Shimano CUES U4000, 9 speed |
| WSECR3LV1-1 | Chain | KMC XGlide, 116 links |
| WSECR3LV1-1 | Cassette/Freewheel | Shimano LG300, 11-48T, 9 speed |
| WSECR3LV1-1 | Chainset | Shimano CUES U4000, 30T chainring, 170mm, 9 speed, 52mm chainline, three-piece crankset |
| WSECR3LV1-1 | Number of Gears | 9 |
| WSECR3LV1-1 | Bottom Bracket | Shimano BB-UN101, square taper, 122.5mm |
| WSECR3LV1-1 | Pedals | Fibre reinforced composite platform |
| WSECR3LV1-1 | Brakes | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| WSECR3LV1-1 | Brake Levers | Tektro M285 |
| WSECR3LV1-1 | Front Hub | Alloy, 15mm x 110mm Boost spacing, 32 hole |
| WSECR3LV1-1 | Rear Hub | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub |
| WSECR3LV1-1 | Rims | Pinned joint, 30mm internal width, tubeless ready, 32 hole |
| WSECR3LV1-1 | Tyres | Maxxis Rekon 29in x 2.4in front and rear |
| WSECR3LV1-1 | Saddle | Whyte Custom |
| WSECR3LV1-1 | Seat Post | TransX size specific dropper post, 30.9mm (size S-M 150mm travel; sizes LG-XL 170mm travel) |
| WSECR4XV1-1 | Frame | 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. |
| WSECR4XV1-1 | Frame Size | Extra Large |
| WSECR4XV1-1 | Fork | SR Suntour XCR 34 29in, 130mm travel, 44mm offset, black stanchions, air spring, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost thru axle |
| WSECR4XV1-1 | Headset | ZS44 upper, ZS56 lower, 1 1/2in Lower and 1 1/8in upper caged bearings |
| WSECR4XV1-1 | Handlebar | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| WSECR4XV1-1 | Stem | Whyte alloy, 35mm extension, 31.8mm bar bore |
| WSECR4XV1-1 | Grips | Whyte Trail lock-on |
| WSECR4XV1-1 | Gear Shifters | Shimano CUES U4000, 9 speed, Band On clamp |
| WSECR4XV1-1 | Rear Derailleur | Shimano CUES U4000, 9 speed |
| WSECR4XV1-1 | Chain | KMC XGlide, 116 links |
| WSECR4XV1-1 | Cassette/Freewheel | Shimano LG300, 11-48T, 9 speed |
| WSECR4XV1-1 | Chainset | Shimano CUES U4000, 30T chainring, 170mm, 9 speed, 52mm chainline, three-piece crankset |
| WSECR4XV1-1 | Number of Gears | 9 |
| WSECR4XV1-1 | Bottom Bracket | Shimano BB-UN101, square taper, 122.5mm |
| WSECR4XV1-1 | Pedals | Fibre reinforced composite platform |
| WSECR4XV1-1 | Brakes | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| WSECR4XV1-1 | Brake Levers | Tektro M285 |
| WSECR4XV1-1 | Front Hub | Alloy, 15mm x 110mm Boost spacing, 32 hole |
| WSECR4XV1-1 | Rear Hub | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub |
| WSECR4XV1-1 | Rims | Pinned joint, 30mm internal width, tubeless ready, 32 hole |
| WSECR4XV1-1 | Tyres | Maxxis Rekon 29in x 2.4in front and rear |
| WSECR4XV1-1 | Saddle | Whyte Custom |
| WSECR4XV1-1 | Seat Post | TransX size specific dropper post, 30.9mm (size S-M 150mm travel; sizes LG-XL 170mm travel) |
| WSECR1SV1-2 | Frame | 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. |
| WSECR1SV1-2 | Frame Size | Small |
| WSECR1SV1-2 | Fork | SR Suntour XCR 34 29in, 130mm travel, 44mm offset, black stanchions, air spring, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost thru axle |
| WSECR1SV1-2 | Headset | ZS44 upper, ZS56 lower, 1 1/2in Lower and 1 1/8in upper caged bearings |
| WSECR1SV1-2 | Handlebar | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| WSECR1SV1-2 | Stem | Whyte alloy, 35mm extension, 31.8mm bar bore |
| WSECR1SV1-2 | Grips | Whyte Trail lock-on |
| WSECR1SV1-2 | Gear Shifters | Shimano CUES U4000, 9 speed, Band On clamp |
| WSECR1SV1-2 | Rear Derailleur | Shimano CUES U4000, 9 speed |
| WSECR1SV1-2 | Chain | KMC XGlide, 116 links |
| WSECR1SV1-2 | Cassette/Freewheel | Shimano LG300, 11-48T, 9 speed |
| WSECR1SV1-2 | Chainset | Shimano CUES U4000, 30T chainring, 170mm, 9 speed, 52mm chainline, three-piece crankset |
| WSECR1SV1-2 | Number of Gears | 9 |
| WSECR1SV1-2 | Bottom Bracket | Shimano BB-UN101, square taper, 122.5mm |
| WSECR1SV1-2 | Pedals | Fibre reinforced composite platform |
| WSECR1SV1-2 | Brakes | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| WSECR1SV1-2 | Brake Levers | Tektro M285 |
| WSECR1SV1-2 | Front Hub | Alloy, 15mm x 110mm Boost spacing, 32 hole |
| WSECR1SV1-2 | Rear Hub | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub |
| WSECR1SV1-2 | Rims | Pinned joint, 30mm internal width, tubeless ready, 32 hole |
| WSECR1SV1-2 | Tyres | Maxxis Rekon 29in x 2.4in front and rear |
| WSECR1SV1-2 | Saddle | Whyte Custom |
| WSECR1SV1-2 | Seat Post | TransX size specific dropper post, 30.9mm (size S-M 150mm travel; sizes LG-XL 170mm travel) |
| WSECR2MV1-2 | Frame | 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. |
| WSECR2MV1-2 | Frame Size | Medium |
| WSECR2MV1-2 | Fork | SR Suntour XCR 34 29in, 130mm travel, 44mm offset, black stanchions, air spring, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost thru axle |
| WSECR2MV1-2 | Headset | ZS44 upper, ZS56 lower, 1 1/2in Lower and 1 1/8in upper caged bearings |
| WSECR2MV1-2 | Handlebar | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| WSECR2MV1-2 | Stem | Whyte alloy, 35mm extension, 31.8mm bar bore |
| WSECR2MV1-2 | Grips | Whyte Trail lock-on |
| WSECR2MV1-2 | Gear Shifters | Shimano CUES U4000, 9 speed, Band On clamp |
| WSECR2MV1-2 | Rear Derailleur | Shimano CUES U4000, 9 speed |
| WSECR2MV1-2 | Chain | KMC XGlide, 116 links |
| WSECR2MV1-2 | Cassette/Freewheel | Shimano LG300, 11-48T, 9 speed |
| WSECR2MV1-2 | Chainset | Shimano CUES U4000, 30T chainring, 170mm, 9 speed, 52mm chainline, three-piece crankset |
| WSECR2MV1-2 | Number of Gears | 9 |
| WSECR2MV1-2 | Bottom Bracket | Shimano BB-UN101, square taper, 122.5mm |
| WSECR2MV1-2 | Pedals | Fibre reinforced composite platform |
| WSECR2MV1-2 | Brakes | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| WSECR2MV1-2 | Brake Levers | Tektro M285 |
| WSECR2MV1-2 | Front Hub | Alloy, 15mm x 110mm Boost spacing, 32 hole |
| WSECR2MV1-2 | Rear Hub | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub |
| WSECR2MV1-2 | Rims | Pinned joint, 30mm internal width, tubeless ready, 32 hole |
| WSECR2MV1-2 | Tyres | Maxxis Rekon 29in x 2.4in front and rear |
| WSECR2MV1-2 | Saddle | Whyte Custom |
| WSECR2MV1-2 | Seat Post | TransX size specific dropper post, 30.9mm (size S-M 150mm travel; sizes LG-XL 170mm travel) |
| WSECR3LV1-2 | Frame | 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. |
| WSECR3LV1-2 | Frame Size | Large |
| WSECR3LV1-2 | Fork | SR Suntour XCR 34 29in, 130mm travel, 44mm offset, black stanchions, air spring, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost thru axle |
| WSECR3LV1-2 | Headset | ZS44 upper, ZS56 lower, 1 1/2in Lower and 1 1/8in upper caged bearings |
| WSECR3LV1-2 | Handlebar | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| WSECR3LV1-2 | Stem | Whyte alloy, 35mm extension, 31.8mm bar bore |
| WSECR3LV1-2 | Grips | Whyte Trail lock-on |
| WSECR3LV1-2 | Gear Shifters | Shimano CUES U4000, 9 speed, Band On clamp |
| WSECR3LV1-2 | Rear Derailleur | Shimano CUES U4000, 9 speed |
| WSECR3LV1-2 | Chain | KMC XGlide, 116 links |
| WSECR3LV1-2 | Cassette/Freewheel | Shimano LG300, 11-48T, 9 speed |
| WSECR3LV1-2 | Chainset | Shimano CUES U4000, 30T chainring, 170mm, 9 speed, 52mm chainline, three-piece crankset |
| WSECR3LV1-2 | Number of Gears | 9 |
| WSECR3LV1-2 | Bottom Bracket | Shimano BB-UN101, square taper, 122.5mm |
| WSECR3LV1-2 | Pedals | Fibre reinforced composite platform |
| WSECR3LV1-2 | Brakes | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| WSECR3LV1-2 | Brake Levers | Tektro M285 |
| WSECR3LV1-2 | Front Hub | Alloy, 15mm x 110mm Boost spacing, 32 hole |
| WSECR3LV1-2 | Rear Hub | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub |
| WSECR3LV1-2 | Rims | Pinned joint, 30mm internal width, tubeless ready, 32 hole |
| WSECR3LV1-2 | Tyres | Maxxis Rekon 29in x 2.4in front and rear |
| WSECR3LV1-2 | Saddle | Whyte Custom |
| WSECR3LV1-2 | Seat Post | TransX size specific dropper post, 30.9mm (size S-M 150mm travel; sizes LG-XL 170mm travel) |
| WSECR4XV1-2 | Frame | 6061-T6 aluminium, multi-shaped tubing; Single Chain Ring (SCR) 1x-specific design; 1.125–1.5in tapered Zero-Stack headtube; full 300mm reamed depth 30.9mm seat tube; Post Mount 180mm disc dropout; SRAM UDH spec derailleur hanger; 12mm x 148mm Boost. |
| WSECR4XV1-2 | Frame Size | Extra Large |
| WSECR4XV1-2 | Fork | SR Suntour XCR 34 29in, 130mm travel, 44mm offset, black stanchions, air spring, adjustable compression and rebound, tapered steerer, 110mm x 15mm Boost thru axle |
| WSECR4XV1-2 | Headset | ZS44 upper, ZS56 lower, 1 1/2in Lower and 1 1/8in upper caged bearings |
| WSECR4XV1-2 | Handlebar | Whyte 6061 alloy, 15mm rise, 31.8mm bar bore, 760mm wide |
| WSECR4XV1-2 | Stem | Whyte alloy, 35mm extension, 31.8mm bar bore |
| WSECR4XV1-2 | Grips | Whyte Trail lock-on |
| WSECR4XV1-2 | Gear Shifters | Shimano CUES U4000, 9 speed, Band On clamp |
| WSECR4XV1-2 | Rear Derailleur | Shimano CUES U4000, 9 speed |
| WSECR4XV1-2 | Chain | KMC XGlide, 116 links |
| WSECR4XV1-2 | Cassette/Freewheel | Shimano LG300, 11-48T, 9 speed |
| WSECR4XV1-2 | Chainset | Shimano CUES U4000, 30T chainring, 170mm, 9 speed, 52mm chainline, three-piece crankset |
| WSECR4XV1-2 | Number of Gears | 9 |
| WSECR4XV1-2 | Bottom Bracket | Shimano BB-UN101, square taper, 122.5mm |
| WSECR4XV1-2 | Pedals | Fibre reinforced composite platform |
| WSECR4XV1-2 | Brakes | Tektro M285 hydraulic disc brake, two piston,180mm diameter disc rotor |
| WSECR4XV1-2 | Brake Levers | Tektro M285 |
| WSECR4XV1-2 | Front Hub | Alloy, 15mm x 110mm Boost spacing, 32 hole |
| WSECR4XV1-2 | Rear Hub | Alloy, double sealed cartridge bearings, 12mm x 148mm Boost spacing, 32 hole, HG freehub |
| WSECR4XV1-2 | Rims | Pinned joint, 30mm internal width, tubeless ready, 32 hole |
| WSECR4XV1-2 | Tyres | Maxxis Rekon 29in x 2.4in front and rear |
| WSECR4XV1-2 | Saddle | Whyte Custom |
| WSECR4XV1-2 | Seat Post | TransX size specific dropper post, 30.9mm (size S-M 150mm travel; sizes LG-XL 170mm travel) |
