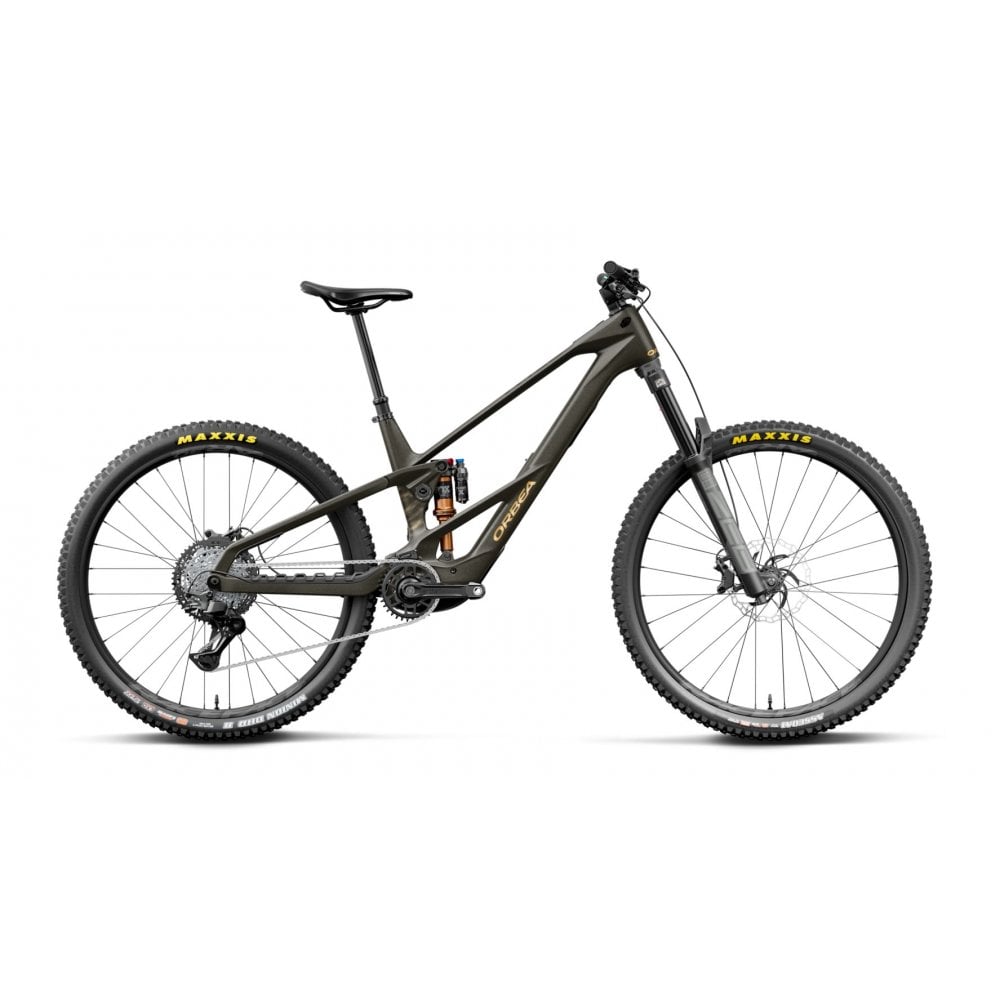

Orbea Wild LT M20 Avinox Electric Mountain Bike with Free DMR Vault Pedals - 2027

The Yes Machine

Nature doesn't like straight lines. It bends and flows, soars and falls. Unlock your instincts. Leave questions of how far or how fast behind. Because whatever question the trail poses, the answer is always yes.

How do you improve a legend? We refined it on the racetrack, focusing on performance in every detail. Keeping the weight low and central keeps things calm as speed, and consequences, rise. On the climbs, RS-tuned assistance maximises traction and control, unlocking lines that once felt out of reach.

Light on weight, not on performance - Low, stable and fast. If Wild LT looks like its come straight from the rack track, its because it has. Racing runs through Wild LT's DNA, shared with its cousin, Rallon. That shows on every ride, unlocking new levels of performance with planted handling, terrain taming suspension and a low center of gravity.

RS Motor DNA. More control. More traction. More Capable - Our RS motor tune optimizes power delivery for better traction and faster response to your input, creating more direct feel on the trail.

RS Ecosystem. Control at your fingertips - More control, with less effort. Smart motor and dropper functions, and an ergonomic remote, so every action feels immediate and natural (available on RS models).

Performance driven frame design

Low, centred and responsive. Every line is considered to prioritise performance.

Every Detail Focused on Performance - Speed demands stability. By lowering mass and centering it around the bottom bracket, we improve control and maneuverability at speed. There is a reason that nothing corners like a Wild LT.

Balance Built In - By optimising the motor mounting area, we are able to lower the shock mount position and in turn the upper linkage and top tube. This means a significant lowering of the center of gravity as well as huge standover clearance.

Low Center of Gravity - Keeping the mass low and centered means that Wild LT feels planted no matter how rough it gets and locks into corners like nothing else.

Standover Clearance - The low top-tube, coupled with a long travel dropper, gives more space to move over the bike and increases maneuverability and confidence at speed.

Low Weight, Ready To Race - Demanding riders are not prepared to compromise. They demand the best suspension, long-travel droppers, large brake rotors and robust wheels and tyres. Wild LT delivers all this with weights starting from below 21kg.

Advanced construction. High-performance materials - Regardless of which material you choose, you can rest assured that we haven't cut any corners with your Wild LT.

OMR Carbon - High modulus, high-strength fibers, and advanced carbon manufacturing techniques let us use less carbon while maintaining strength and rigidity. The carbon frameset also includes a carbon link which removes further mass higher up in the frame.

High Polish Alloy - Using aluminum technologies which are as advanced as our carbon manufacturing ensures our alloy bikes are never second-best. Including all of Wild LT's great features on an alloy frame was complicated, but we don't compromise on our alloy frames.

Tuned Rigidity - Our braced frame design adds stiffness around the bottom bracket, which is especially important on an eMTB. Our Secure Battery System avoids large frame openings, saving weight while maintaining rigidity and improving the reliability of the electronics.

Downhill developed suspension

DH-level suspension performance to smooth the roughest tracks. Wild LT´s updated suspension kinematics are the same as Rallon uses to race at the highest levels.

• Gravity Kinematics - A 170mm fork matched with 170mm rear travel gives Wild LT the balance to perform. Or choose the optional 180mm fork for more the most aggressive riding

Race Ready Geometry

Wild LT's geometry has been shaped by years of downhill testing and now it’s more adaptable than ever. With new levels of adjustability, you can fine-tune your setup to suit everything from steep chutes to fast, flowy trails.

• Low Standover - Balance for High Speed
• 155mm Cranks - Maximised Ground Clearance
• E-Tuned BB drop - Performance on Technical Climbs

29" or Rock A Mullet - With a dedicated linkage for each wheel size, you can swap between mullet or full 29"" without affecting the geometry. 29"" wheels front and back maximize speed and traction on the climbs, or choose a 27.5"" in the rear for a more playful, nimble ride.

High / Low: Flip Chip Adjust - Choose between high and low positions. The higher position adds ground clearance and steepens the angles a bit for tighter trails or to maximise climbing performance. The lower position offers the ultimate stability for more aggressive trails and flat out descending. The flip chip adjusts the BB by 8mm and HA by 0.5º.

Adjustable Headset Standard - The ZS56 headset standard supports aftermarket reach and angle-adjust cups for fine-tuning fit and geometry.

Steep 'n' Deep: Lower Saddles Mean Faster Bikes - With its steep seat tube and deep insertion, Wild LT has one of the lowest standovers around, meaning lots of space for your choice of long-travel dropper posts. Get that saddle right out of the way when things get steep and deep.

RS Tune

Creating a motor that could keep up with Wild LT's capability meant tuning exactly how the assistance is delivered. Technical climbs demand precise control, so support must arrive instantly, follow rider inputs naturally, and deliver the right amount of power exactly when needed.

Avinox M2S RS Motor - The advanced sensos of the Avinox motor provided the perfect foundation for creating our RS riding experience. Working deep within the motor firmware allowed us to shape how the motor responds and create the ride experience we were looking for.

The Importance of Motor Reactivity - Reactivity defines how quickly the motor responds to rider input. We can tune how much pedal input is needed to activate the motor assistance, and how quickly that assistance is applied.

Pedal Inputs - Our RS tune reduces the pedal movement required before assistance begins and increases the motor's sensitivity to rider inputs compared to a standard M2S motor.

5x less pedal rotation required. 2x more sensitive to pedal force. 3x more sensitive to pedaling speed.

Start-Up Curve - How quickly assistance builds is just as important as how much power is available. The RS tune allows support to ramp up more rapidly, helping the motor react to the rider more closely and naturally.

Creating The Motor Tune

Developing the RS tune required working deep within the motor firmware and validating every change on the trail with a wide range of riders. Months of testing and countless iterations were necessary to create a tune that delivers exactly the response demanding riders need.

1. Faster Reactions - Increased motor reactivity gives you a stronger, more immediate punch when you need it most on technical climbs.
2. Hill Starts - A more reactive motor makes it much easier to restart on steeper climbs.
3. Pedal ratcheting - In technical sections it is often not possible to make complete pedal strokes. To advance we need to quickly move the cranks by a few degrees. This is called ratcheting and it is key for technical climbing.

Power and Torque for the steepest climbs

Dominate technical climbs with four custom tuned assistance modes plus Superboost.

Wild LT offers four tuned modes, with up to 130Nm and 750W. This, together with the increased reactivity, lets riders conquer the toughest, most technical climbs.

The Importance of Torque On Technical Climbs - When climbs become technical and cadence drops, torque becomes more important than power. High torque provides the immediate support needed to maintain momentum, overcome obstacles, and keep moving through terrain that would otherwise force riders to stop. Our RS Tune prioritises a high torque, delivering up to 130Nm of torque, rising to 150Nm with Superboost, giving riders the support needed to conquer the most demanding climbs.

Superboost: An Extra Punch When You Need It - Superboost unlocks up to 1300W and 150Nm of assistance for a programmable period of time. It provides an instant surge of power to gain momentum in order to clear obstacles or conquer the steepest sections. Using the RS HMI controller, Superboost can be activated instantly whenever needed.

Fine Tune Mode: Adjust Each Assistance Mode To Suit Your Ride - Fine tune each assistance level while riding using the right-side buttons on the RS HMI controller. This lets riders fine-tune assistance levels to match terrain, conditions, and personal preference.

Range for Big Rides

Saving power when it is not needed, plus the choice of 600Wh and 800Wh batteries, means more range than ever.

Increased Reactivity, Improved Efficiency - By responding more quickly to changes in rider input, the RS tune delivers support only when it is needed. This smart delivery saves energy, giving you approximately 10 to 15% more range.

Battery Options For Your Riding - With MyO, you can tailor Wild LT to the way you ride. The 600Wh battery prioritises agility and handling, delivering the lightest possible ride feel. Riders looking to maximise range can choose the 800Wh battery, gaining 33% more capacity for longer rides and bigger objectives, with a weight increase of approximately 870g.

RS Ecosystem: Seamless Integration

When you choose an RS model you can count on our latest technology to enhance your ride experience. The RS ecosystem is a complete system engineered from the start to work together to give riders more control.

Control at your fingertips - Our RS-HMI gives you more control without moving your hands from the bars. A single, compact remote brings motor control, ride information and smart dropper functions together, so that every action feels immediate and natural.

Larger surfaces, tactile textures, and a satisfying click give clear feedback with every press. Button positioning has also been refined, placing the most used functions exactly where you need them, so control feels natural, fast and effortless.

• Motor Assistance - The front LED clearly shows the assistance level, including when walk mode is activated.
• Fine Tune Motor Assistance - Fine tune each assistance level while riding using the right-side buttons on the RS HMI controller.
• Full Charge Indicator - Be sure that you are at 100% charge before leaving for your ride.
• Super Boost - Unlock maximum assistance for a predefined burst when you need it most. Ideal for short sharp climbs.
• Stealth Mode - Dim, or totally switch off, the lights on the RS HMI for a stealthier ride.

Built For Action

Ride after ride after ride, enjoy a quiet, reliable frame with gravity standard components and clever features.

• DH proven wheels - You will find OQUO's MC32 wheels on Wild LT. These are the wheels our team uses for racing DH.
• DH and DD tyres - The toughest tyres for the roughest tracks. All models come with the strongest Maxxis DH and DD options to accompany you wherever you dare to go.
• Fully Loaded Pivot - A multitool with 2, 3, 4, and 5mm hex keys held securely in place with a magnet while the rear axle holds a 6mm hex key for quick adjustments right at hand.
• Second Skin - The replaceable vinyl protection keeps the paintwork looking like new for longer.
• Improved Cable Routing - Cables are fully guided, eliminating rattling and making it easy to change cables during maintenance.
• Fully Sealed Bearings - Most bearing failures come from grime, not load. Wild LT’s sealed pivot points protect against dirt, helping your suspension stay smooth and consistent ride after ride.
• Upgraded Frame Protection - The upgraded, soft rubber chainstay protector with hollow recesses absorbs chain hits better and makes less noise.
