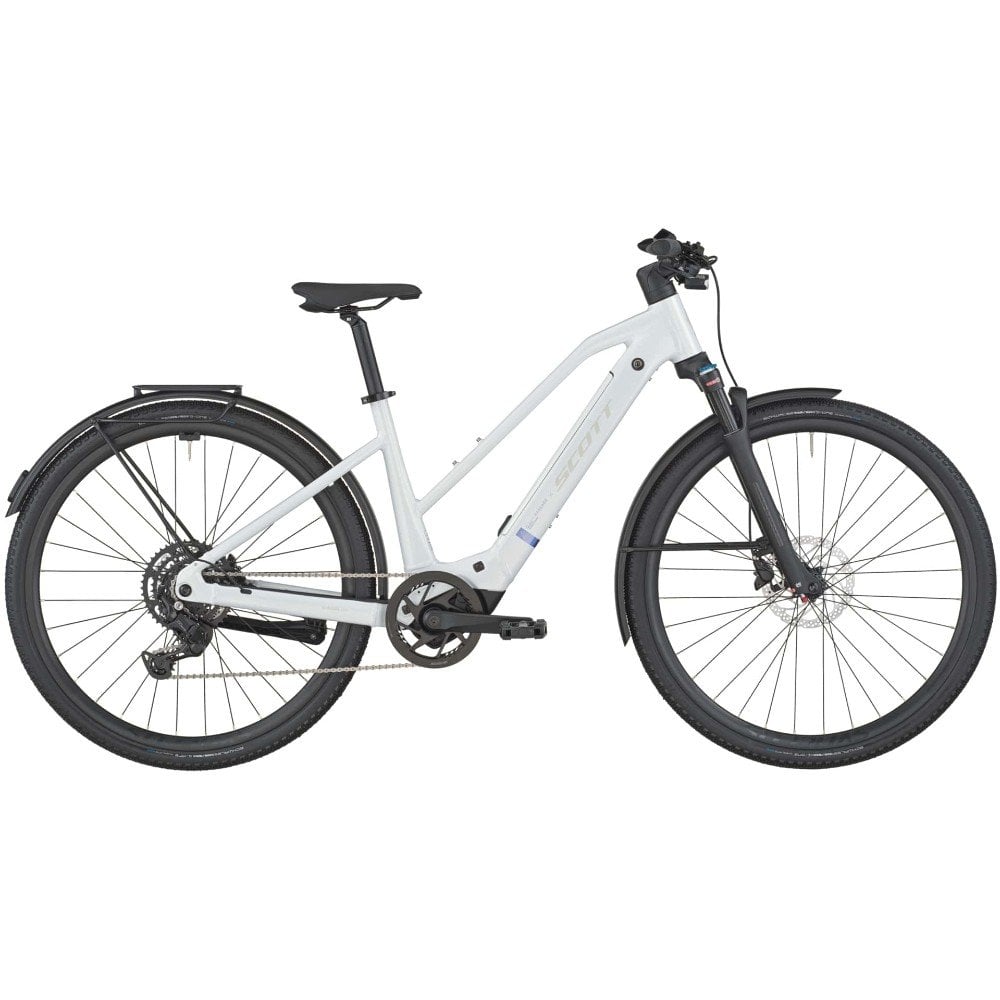

- Scott Passage 20 Slope Electric Hybrid Bike - 2026
Swing a leg over the easy-to-mount Passage 20 Slope E-Bike and make riding around town a breeze. With a gently sloping top tube, this Passage 20 makes getting on the bike easier for those with shorter legs, hip mobility limitations, or anyone who prefers a step-through design over the traditional over-the-saddle mounting style.
Passage 20 Slope brings all the performance specs and ride quality of the Passage 20. Its midweight design centers around a lightweight yet powerful Bosch SX motor and 400Wh battery, which optimizes handling for an effortless ride and supplies all the pep and range you'll need around town.
On the ride, Passage 20 feels effortless, accelerating smoothly over hills, providing confident torque from a stop, and the pull to power you to your destination on the other side of town. It also feels like a traditional bike, thanks to the trim frame design and lightweight 2kg motor drive, so navigating congested roads feels less cumbersome and sluggish compared to a heavier urban E-Bike. Plus, the compact motor drive is narrower than a traditional e-bike, meaning Passage 20 won't leave you feeling like you're pedaling a bike that's too wide.
We equipped this Passage 20 with a 75mm suspension fork to soften rough pavement on your routes and 45mm tires to add stability and durability no matter what comes your way. Its 9-speed drivetrain gives you the gearing range to ride around town like a pro, and the rear rack sets you up to stow the day’s essentials.
Please note that bike specifications are subject to change without prior notice.
| Maximum Assisted Speed | 15.5mph / 25kmh |
|---|---|
| Motor | Bosch Performance Line SX (BDU314Y) |
| Motor Type | Mid motor |
| Battery | Compact Tube 400Wh |
| Battery Type | Integrated |
| Charger | 2A Charger |
| Display | Bosch Purion 200 |
| Frame | Alloy S-L=29", 6061 Alloy custom butted tubing, Top extraction battery |
| Fork | SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Steel Steerer, 75mm Travel |
| Headset | Acros, 1.5"- 1.5", semi integ. OD 50/61mm, ID 44/55mm |
| Gear Shifters | Shimano CUES SLU4009RC, 9 Speed |
| Rear Derailleur | Shimano CUES RDU4000GS 9 Speed |
| Chain | Shimano LG500 |
| Cassette/Freewheel | Shimano LG300, 11-46T |
| Chainset | FSA CK-220 170mm |
| Number of Gears | 9 |
| Pedals | Marwi SP-827 |
| Brakes | Shimano BR-MT200 Disc |
| Front Hub | Shimano HBTC50015B CL, 15x100mm |
| Rear Hub | Shimano FHTC500HMB CL, 12x142mm |
| Rims | Syncros X15 Disc |
| Tyres | Schwalbe G-One Overland 365 Performance, 700x45C / Schwalbe G-One Overland 365 Performance, 700x45C |
| Saddle | Syncros Capilano |
| Seat Post | Syncros M3.0, 31.6 |
| Lights | Lezyne Fusion E550SM / Supernova TL3Z |
| Mudguards | Alumee alloy profile Fender |
| Kickstand | Hebie Kickstand |
| Pannier Rack | Racktime Micro Rack SnapIt 2.0 8KG |
