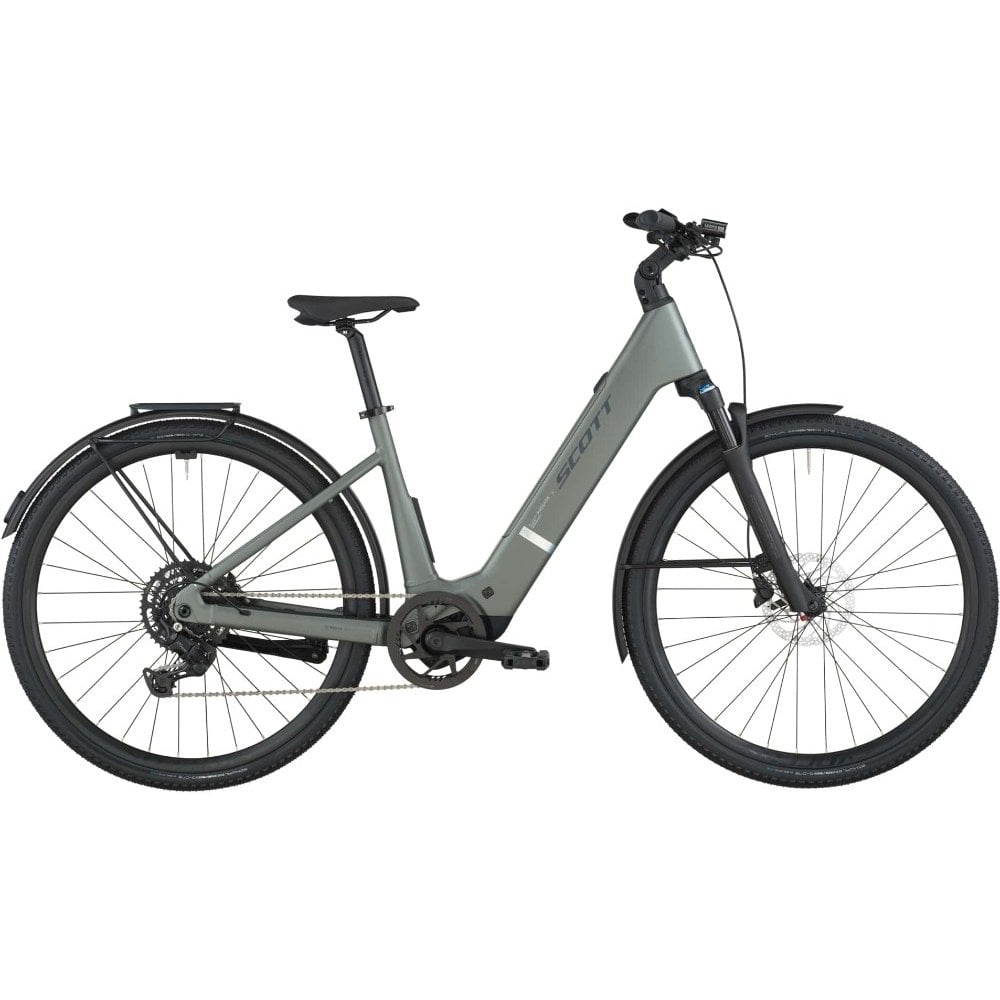

- Scott Passage 20 Wave Electric Hybrid Bike - 2026
Passage 20 Wave is a full step-through E-Bike designed to take your urban riding to the next level. The open design makes it easy to mount and dismount the bike, whether on a commute or enjoying a tour around town.
The center of it all is the lightweight yet strong Bosch SX motor unit and tidy 400Wh battery. On the ride, the combo provides effortless performance on the pedals, accelerating smoothly over hills, delivering confident torque from a stop, and supplying the range to power you to your destination on the other side of town.
Handling is also light and easy, feeling more like a traditional bike than cumbersome and sluggish compared to a heavier urban E-Bike. The motor unit is just 2kg, low in the frame, and compact enough to provide confidence when navigating and a more natural pedaling style thanks to its favorable Q-factor.
We equipped this Passage 20 with a 75mm suspension fork to soften rough pavement on your routes and 45mm tires to add stability and durability no matter what comes your way. Its 9-speed drivetrain gives you the gearing range to ride around town like a pro, and the rear rack sets you up to stow the day’s essentials.
Please note that bike specifications are subject to change without prior notice.
| Maximum Assisted Speed | 15.5mph / 25kmh |
|---|---|
| Motor | Bosch Performance Line SX (BDU314Y) |
| Motor Type | Mid motor |
| Battery | Compact Tube 400Wh |
| Battery Type | Integrated |
| Charger | 2A Charger |
| Display | Bosch Purion 200 |
| Frame | Alloy S-L=29", 6061 Alloy custom butted tubing, Top extraction battery |
| Fork | SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Steel Steerer, 75mm Travel |
| Headset | Acros, 1.5"- 1.5", semi integ. OD 50/61mm, ID 44/55mm |
| Gear Shifters | Shimano CUES SLU4009RC, 9 Speed |
| Rear Derailleur | Shimano CUES RDU4000GS 9 Speed |
| Chain | Shimano LG500 |
| Cassette/Freewheel | Shimano LG300, 11-46T |
| Chainset | FSA CK-220 170mm |
| Number of Gears | 9 |
| Pedals | Marwi SP-827 |
| Brakes | Shimano BR-MT200 Disc |
| Front Hub | Shimano HBTC50015B CL, 15x100mm |
| Rear Hub | Shimano FHTC500HMB CL, 12x142mm |
| Rims | Syncros X15 Disc |
| Tyres | Schwalbe G-One Overland 365 Performance, 700x45C / Schwalbe G-One Overland 365 Performance, 700x45C |
| Saddle | Syncros Capilano |
| Seat Post | Syncros M3.0, 31.6 |
| Lights | Lezyne Fusion E550SM / Supernova TL3Z |
| Mudguards | Alumee alloy profile Fender |
| Kickstand | Hebie Kickstand |
| Pannier Rack | Racktime Micro Rack SnapIt 2.0 8KG |
