Whyte Karve Evo RS Avinox Electric Mountain Bike

  • £5,650.00
  • (FREE UK Delivery)
Item in Stock   |   Usually dispatched within 24 hours

The following bikes are on backorder with Whyte. Our estimated availability dates are below:

  • Medium - 11th January 2027
  • Large - 1st March 2027

Available to purchase through various Cycle to Work schemes, including Cyclescheme, Green Commute Initiative, Cycle Solutions and Vivup. Finance options also available. For more info please call us on 0121 748 8008 or please click here.

If you have seen this bike cheaper elsewhere, why not let us try to price match? Simply fill in your details on our enquiry form (click here), confirm colour/size and include a link to the bike on the website that you want us to price match. We'll check and be in touch shortly afterwards.

Loading...

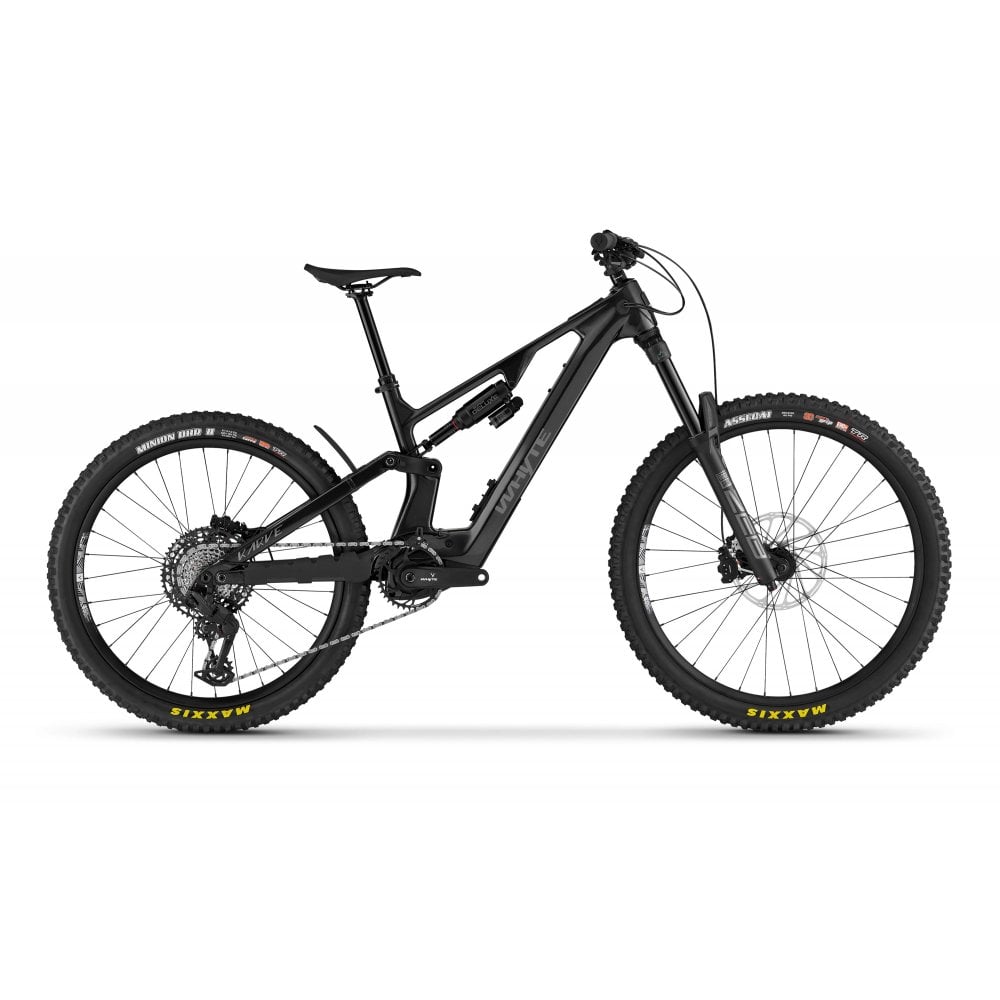

Dressed to impress and packing a serious performance punch, the Avinox motor equipped Whyte Karve EVO RS is our most affordable, unstoppable, maximum control gravity thrill machine for self-shuttled riding, bike park play, and big mountain terrain.

Engineered with the confidence, capability and control to enable you to master the toughest tracks, the power to shuttle effortlessly, and the range to drop in again, and again, and again...

If the biggest terrain is your playground, Karve EVO RS is your access all areas pass.

  • 180mm front and rear of Whyte custom-tuned suspension travel.
  • Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong.
  • Avinox full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost)
  • SRAM Eagle 70 mechanical T-Type 1x12 transmission + SRAM Maven Base four-piston hydraulic brakes.
  • Avinox DPC100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
  • 800Wh internal battery so you can get more runs in.
  • MX wheels (29er front, 27.5in rear) for maximum confidence on even the steepest terrain + full 29er ready.
Electric Bikes
Maximum Assisted Speed15.5mph / 25kmh
MotorAvinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost.
Motor TypeMid motor
Motor Torque150nm
BatteryAvinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
Battery TypeIntegrated
ChargerCharger 4A (230V)
DisplayAvinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.
FrameUni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts
ForkRockShox ZEB Select, 180mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
Rear ShockRockShox Super Deluxe Select RT, DebonAir, Fast Black coating, adjustable rebound, 230 x 62.5mm, custom tuned for Whyte
HeadsetZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings
HandlebarWhyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
StemWhyte, 35mm extension, 35mm bar bore
GripsWhyte Enduro lock-on
Gear ShiftersSRAM Eagle 90, 12 speed
Rear DerailleurSRAM Eagle 70 T-Type mechanical, 12 speed
ChainSRAM Eagle 70, 12 speed
Cassette/FreewheelSRAM XS 1270, T-Type, 10-52T, 12 speed
ChainsetWhyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type
Number of Gears12
PedalsFibre reinforced composite platform
BrakesSRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm(F) and 200mm (R) six bolt Centreline rotors
Brake LeversSRAM Maven Base
Front HubAlloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole
Rear HubAlloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub
RimsWhyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29in front, 27.5in rear
TyresMaxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)
SaddleWhyte Custom
Seat PostTranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
