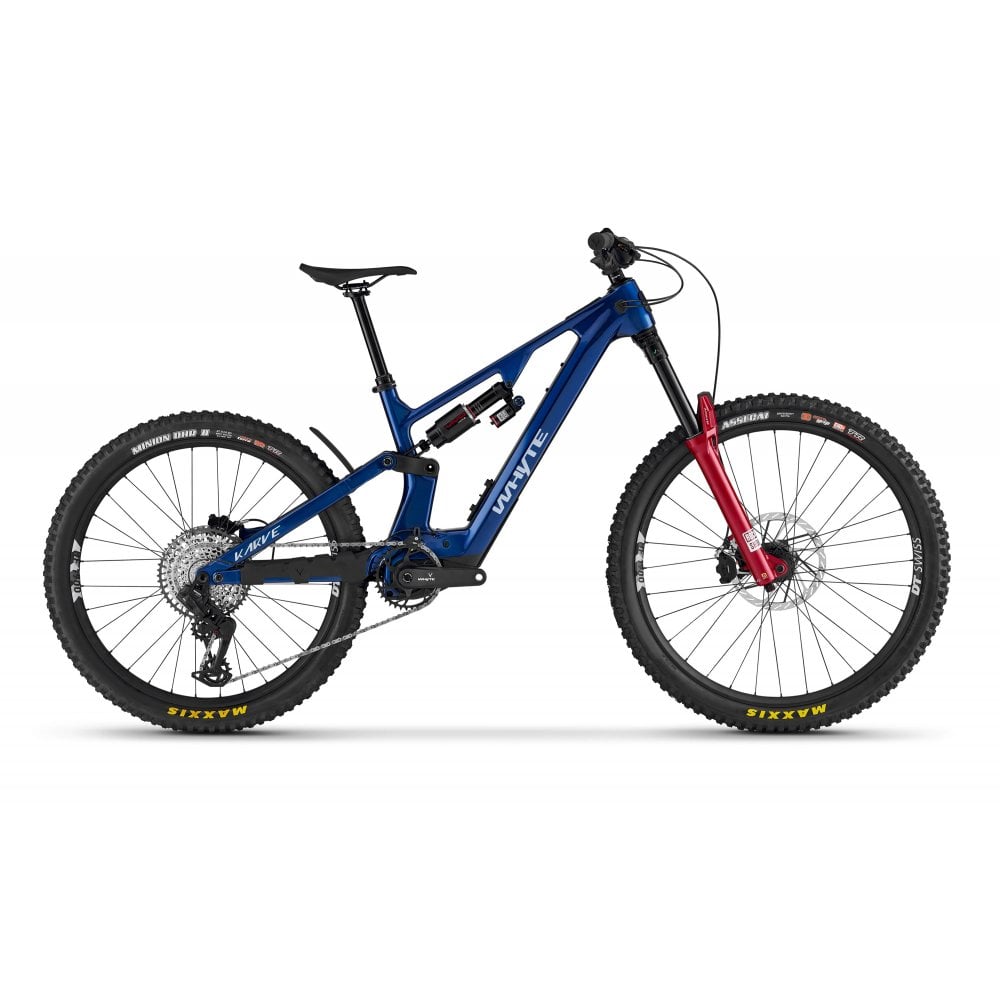

Whyte Karve Evo RSX Avinox Electric Mountain Bike

  • £7,299.00
  • (FREE UK Delivery)
Item in Stock   |   Usually dispatched within 24 hours

The following bikes are on backorder with Whyte. Our estimated availability dates are below:

  • Medium - 9th January 2027
  • Large - 9th January 2027

Available to purchase through various Cycle to Work schemes, including Cyclescheme, Green Commute Initiative, Cycle Solutions and Vivup. Finance options also available. For more info please call us on 0121 748 8008 or please click here.

If you have seen this bike cheaper elsewhere, why not let us try to price match? Simply fill in your details on our enquiry form (click here), confirm colour/size and include a link to the bike on the website that you want us to price match. We'll check and be in touch shortly afterwards.

Loading...

For the toughest tracks. The supreme self-shuttle machine. With the power of Avinox inside. Karve EVO is the chaos-crushing, climb-shrinking electric mountain bike (eMTB) for self-shuttled riding and big mountain terrain. If having the best time dropping in on the biggest terrain is why you ride, Karve EVO RSX is ready.

  • 180mm front and rear of Whyte custom-tuned suspension travel.
  • Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong
  • Avinox full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost) + 12A fast charger.
  • SRAM AXS Eagle 1x12 transmission + SRAM Maven Silver four-piston hydraulic brakes.
  • Avinox DPC100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
  • 800Wh internal battery so you can get more runs in.
  • DT Swiss Hybrid MX wheels (29er front, 27.5in rear) for maximum confidence on even the steepest terrain + full 29er ready.
  • Fitted with RideWrap frame protection kit from the factory (85% coverage).
Electric Bikes
Maximum Assisted Speed15.5mph / 25kmh
MotorAvinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. AXS derailleur powered off motor and featuring SmoothShift.
Motor TypeMid motor
Motor Torque150nm
BatteryAvinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
Battery TypeIntegrated
ChargerCharger 12A (230V)
DisplayAvinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.
FrameUni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts, RideWrap frame protection kit fitted as standard
ForkRockShox ZEB Ultimate, 180mm travel, 44mm offset, Linear XL, Charger 3.2 damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
Rear ShockRockShox Vivid Ultimate RC2T, 230 x 62.5mm, custom tuned for Whyte
HeadsetZS56 upper / lower headset cups for 1 1/8in upper and 1.5in lower with sealed bearings
HandlebarWhyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
StemWhyte, 35mm extension, 35mm bar bore
GripsWhyte Enduro lock-on
Gear ShiftersSRAM AXS Pod, right, MMX, 12 speed
Rear DerailleurSRAM S1000 AXS Eagle, 12 speed
ChainSRAM GX T-Type, 12 speed
Cassette/FreewheelSRAM XS 1275, T-Type, 10-52T, 12 speed
ChainsetWhyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type
Number of Gears12
PedalsFibre reinforced composite platform
BrakesSRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 220mm (F) and 200mm (R) six bolt HS2 rotors
Brake LeversSRAM Maven Silver
Front HubDT Swiss Hybrid HF1900, 110mm x 15mm Boost, six bolt
Rear HubDT Swiss Hybrid HF1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six bolt
RimsDT Swiss Hybrid HF1900, 29in front, 27.5in rear
TyresMaxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 27.5 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)
SaddleWhyte Custom
Seat PostTranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
