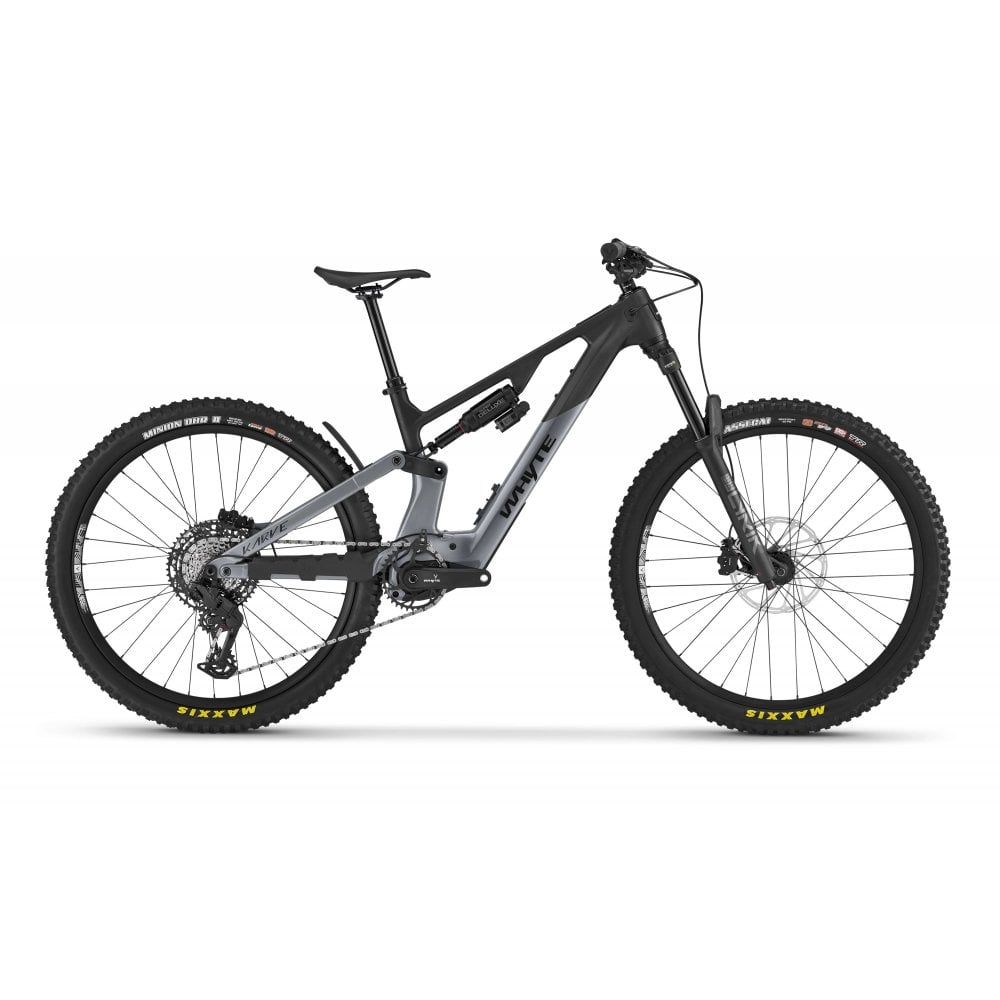

Whyte Karve RS Avinox Electric Mountain Bike
- £5,650.00 £4,708.33
- Secure yours with a deposit of
- (FREE UK Delivery)
- |
- |
- (%)
Item in Stock
Item out of Stock
|
Usually dispatched within 24 hours
The bikes below are in stock and available for next working day dispatch:
- Medium
- Large
Available to purchase through various Cycle to Work schemes, including Cyclescheme, Green Commute Initiative, Cycle Solutions and Vivup. Finance options also available. For more info please call us on 0121 748 8008 or please click here.
If you have seen this bike cheaper elsewhere, why not let us try to price match? Simply fill in your details on our enquiry form (click here), confirm colour/size and include a link to the bike on the website that you want us to price match. We'll check and be in touch shortly afterwards.
Loading...
Furiously fast, powerfully capable
Powerful, agile and balanced, Karve RS is a thrilling all-rounder that pairs proportional geometry with size-specific tuning to deliver balanced, assured handling for every rider. Confident and highly capable, it’s built for those who expect more control, composure and consistency from every ride. From steep descents to technical climbs and demanding back-country trails, it delivers the stability and precision to stay on line when it matters. Controlled handling, strong, responsive support and a planted feel let you ride with commitment and carry speed with confidence. Designed, developed and proven in the UK, Karve RS is built to be dependable, resilient and ready to perform all year-round. All so you can turn every ride up to 11 – and keep it there.
Highlights
- 160mm front and 160mm rear of proven Quad-Link 4 suspension, with carefully custom-tuned rear shocks.
- Uni-directional carbon fibre (front) and alloy (rear) frame with geometry adjustment is light and strong.
- Avinox M2S full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost)
- SRAM Eagle 90 mechanical T-Type 1x12 transmission + SRAM Maven Base four-piston hydraulic brakes.
- Avinox DP100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
- 800Wh internal battery so you can ride further.
- 29in trail-smoothing wheels front and rear + MX ready.
- Charge time (800Wh): 80% in 4hr 54mins approx. from empty, and to 100% in 6hrs 11mins approx. with 4A charger.
Code:
Electric Bikes
| WEKARRS1SV1-1 | Maximum Assisted Speed | 15.5mph / 25kmh |
|---|---|---|
| WEKARRS1SV1-1 | Motor | Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. |
| WEKARRS1SV1-1 | Motor Type | Mid motor |
| WEKARRS1SV1-1 | Motor Torque | 150nm |
| WEKARRS1SV1-1 | Battery | Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor. |
| WEKARRS1SV1-1 | Battery Type | Integrated |
| WEKARRS1SV1-1 | Charger | Charger 4A (230V) |
| WEKARRS1SV1-1 | Display | Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips. |
| WEKARRS1SV1-1 | Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts |
| WEKARRS1SV1-1 | Fork | RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth |
| WEKARRS1SV1-1 | Rear Shock | RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte |
| WEKARRS1SV1-1 | Headset | FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings |
| WEKARRS1SV1-1 | Handlebar | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| WEKARRS1SV1-1 | Stem | Whyte, 35mm extension, 35mm bar bore |
| WEKARRS1SV1-1 | Grips | Whyte Enduro lock-on |
| WEKARRS1SV1-1 | Gear Shifters | SRAM Eagle 70, 12 speed |
| WEKARRS1SV1-1 | Rear Derailleur | SRAM Eagle 90 T-Type mechanical, 12 speed |
| WEKARRS1SV1-1 | Chain | SRAM Eagle 70, 12 speed |
| WEKARRS1SV1-1 | Cassette/Freewheel | SRAM XS 1270, T-Type, 10-52T, 12 speed |
| WEKARRS1SV1-1 | Chainset | Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type |
| WEKARRS1SV1-1 | Number of Gears | 12 |
| WEKARRS1SV1-1 | Pedals | Fibre reinforced composite platform |
| WEKARRS1SV1-1 | Brakes | SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor |
| WEKARRS1SV1-1 | Brake Levers | SRAM Maven Base |
| WEKARRS1SV1-1 | Front Hub | Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole |
| WEKARRS1SV1-1 | Rear Hub | Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub |
| WEKARRS1SV1-1 | Rims | Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rear |
| WEKARRS1SV1-1 | Tyres | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
| WEKARRS1SV1-1 | Saddle | Whyte CustomWhyte Custom |
| WEKARRS1SV1-1 | Seat Post | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
| WEKARRS2MV1-1 | Maximum Assisted Speed | 15.5mph / 25kmh |
| WEKARRS2MV1-1 | Motor | Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. |
| WEKARRS2MV1-1 | Motor Type | Mid motor |
| WEKARRS2MV1-1 | Motor Torque | 150nm |
| WEKARRS2MV1-1 | Battery | Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor. |
| WEKARRS2MV1-1 | Battery Type | Integrated |
| WEKARRS2MV1-1 | Charger | Charger 4A (230V) |
| WEKARRS2MV1-1 | Display | Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips. |
| WEKARRS2MV1-1 | Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts |
| WEKARRS2MV1-1 | Fork | RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth |
| WEKARRS2MV1-1 | Rear Shock | RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte |
| WEKARRS2MV1-1 | Headset | FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings |
| WEKARRS2MV1-1 | Handlebar | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| WEKARRS2MV1-1 | Stem | Whyte, 35mm extension, 35mm bar bore |
| WEKARRS2MV1-1 | Grips | Whyte Enduro lock-on |
| WEKARRS2MV1-1 | Gear Shifters | SRAM Eagle 70, 12 speed |
| WEKARRS2MV1-1 | Rear Derailleur | SRAM Eagle 90 T-Type mechanical, 12 speed |
| WEKARRS2MV1-1 | Chain | SRAM Eagle 70, 12 speed |
| WEKARRS2MV1-1 | Cassette/Freewheel | SRAM XS 1270, T-Type, 10-52T, 12 speed |
| WEKARRS2MV1-1 | Chainset | Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type |
| WEKARRS2MV1-1 | Number of Gears | 12 |
| WEKARRS2MV1-1 | Pedals | Fibre reinforced composite platform |
| WEKARRS2MV1-1 | Brakes | SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor |
| WEKARRS2MV1-1 | Brake Levers | SRAM Maven Base |
| WEKARRS2MV1-1 | Front Hub | Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole |
| WEKARRS2MV1-1 | Rear Hub | Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub |
| WEKARRS2MV1-1 | Rims | Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rear |
| WEKARRS2MV1-1 | Tyres | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
| WEKARRS2MV1-1 | Seat Post | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
| WEKARRS3LV1-1 | Maximum Assisted Speed | 15.5mph / 25kmh |
| WEKARRS3LV1-1 | Motor | Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. |
| WEKARRS3LV1-1 | Motor Type | Mid motor |
| WEKARRS3LV1-1 | Motor Torque | 150nm |
| WEKARRS3LV1-1 | Battery | Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor. |
| WEKARRS3LV1-1 | Battery Type | Integrated |
| WEKARRS3LV1-1 | Charger | Charger 4A (230V) |
| WEKARRS3LV1-1 | Display | Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips. |
| WEKARRS3LV1-1 | Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts |
| WEKARRS3LV1-1 | Fork | RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth |
| WEKARRS3LV1-1 | Rear Shock | RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte |
| WEKARRS3LV1-1 | Headset | FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings |
| WEKARRS3LV1-1 | Handlebar | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| WEKARRS3LV1-1 | Stem | Whyte, 35mm extension, 35mm bar bore |
| WEKARRS3LV1-1 | Grips | Whyte Enduro lock-on |
| WEKARRS3LV1-1 | Gear Shifters | SRAM Eagle 70, 12 speed |
| WEKARRS3LV1-1 | Rear Derailleur | SRAM Eagle 90 T-Type mechanical, 12 speed |
| WEKARRS3LV1-1 | Chain | SRAM Eagle 70, 12 speed |
| WEKARRS3LV1-1 | Cassette/Freewheel | SRAM XS 1270, T-Type, 10-52T, 12 speed |
| WEKARRS3LV1-1 | Chainset | Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type |
| WEKARRS3LV1-1 | Number of Gears | 12 |
| WEKARRS3LV1-1 | Pedals | Fibre reinforced composite platform |
| WEKARRS3LV1-1 | Brakes | SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor |
| WEKARRS3LV1-1 | Brake Levers | SRAM Maven Base |
| WEKARRS3LV1-1 | Front Hub | Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole |
| WEKARRS3LV1-1 | Rear Hub | Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub |
| WEKARRS3LV1-1 | Rims | Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rear |
| WEKARRS3LV1-1 | Tyres | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
| WEKARRS3LV1-1 | Saddle | Whyte Custom |
| WEKARRS3LV1-1 | Seat Post | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
| WEKARRS4XV1-1 | Maximum Assisted Speed | 15.5mph / 25kmh |
| WEKARRS4XV1-1 | Motor | Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. |
| WEKARRS4XV1-1 | Motor Type | Mid motor |
| WEKARRS4XV1-1 | Motor Torque | 150nm |
| WEKARRS4XV1-1 | Battery | Avinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor. |
| WEKARRS4XV1-1 | Battery Type | Integrated |
| WEKARRS4XV1-1 | Charger | Charger 4A (230V) |
| WEKARRS4XV1-1 | Display | Avinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips. |
| WEKARRS4XV1-1 | Frame | Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts |
| WEKARRS4XV1-1 | Fork | RockShox Lyrik Select, 160mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth |
| WEKARRS4XV1-1 | Rear Shock | RockShox Super Deluxe Select, DebonAir, Fast Black coating, adjustable rebound, 230 x 57.5mm, custom tuned for Whyte |
| WEKARRS4XV1-1 | Headset | FSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings |
| WEKARRS4XV1-1 | Handlebar | Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide |
| WEKARRS4XV1-1 | Stem | Whyte, 35mm extension, 35mm bar bore |
| WEKARRS4XV1-1 | Grips | Whyte Enduro lock-on |
| WEKARRS4XV1-1 | Gear Shifters | SRAM Eagle 70, 12 speed |
| WEKARRS4XV1-1 | Rear Derailleur | SRAM Eagle 90 T-Type mechanical, 12 speed |
| WEKARRS4XV1-1 | Chain | SRAM Eagle 70, 12 speed |
| WEKARRS4XV1-1 | Cassette/Freewheel | SRAM XS 1270, T-Type, 10-52T, 12 speed |
| WEKARRS4XV1-1 | Chainset | Whyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type |
| WEKARRS4XV1-1 | Number of Gears | 12 |
| WEKARRS4XV1-1 | Pedals | Fibre reinforced composite platform |
| WEKARRS4XV1-1 | Brakes | SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotor |
| WEKARRS4XV1-1 | Brake Levers | SRAM Maven Base |
| WEKARRS4XV1-1 | Front Hub | Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole |
| WEKARRS4XV1-1 | Rear Hub | Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub |
| WEKARRS4XV1-1 | Rims | Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front and rear |
| WEKARRS4XV1-1 | Tyres | Maxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear) |
| WEKARRS4XV1-1 | Saddle | Whyte Custom |
| WEKARRS4XV1-1 | Seat Post | TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop) |
