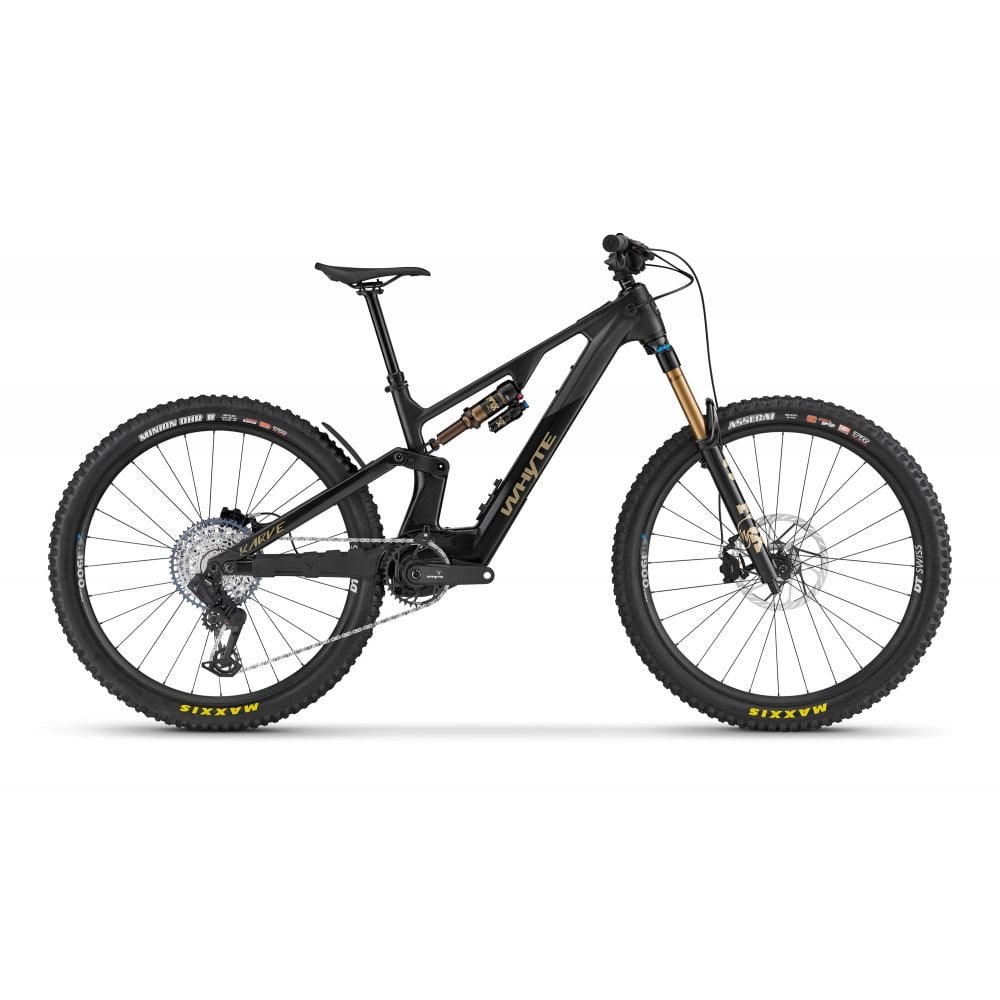

Whyte Karve RSX Avinox Electric Mountain Bike

  • £7,799.00
  • (FREE UK Delivery)
Item in Stock   |   Usually dispatched within 24 hours

The following bikes are on backorder with Whyte. Our estimated availability dates are below:

  • Medium - 13th December 2026
  • Large - 6th October 2026

Available to purchase through various Cycle to Work schemes, including Cyclescheme, Green Commute Initiative, Cycle Solutions and Vivup. Finance options also available. For more info please call us on 0121 748 8008 or please click here.

If you have seen this bike cheaper elsewhere, why not let us try to price match? Simply fill in your details on our enquiry form (click here), confirm colour/size and include a link to the bike on the website that you want us to price match. We'll check and be in touch shortly afterwards.

Loading...

Exhilaration everywhere

A thrilling 160mm full-carbon eMTB, engineered to be ridden hard, fast and without compromise. Combining proportional geometry with size-specific tuning Karve RSX delivers perfectly balanced handling for every rider.

Confidence-inspiring and relentlessly capable, it’s built for those who demand more from every trail. Wherever you point it – steep descents, technical climbs or demanding back-country terrain – it delivers the poise, power and control to hold its line when it matters most.

Precise handling, powerful support and an assured, planted feel let you press on, commit fully and carry speed where others hold back. Designed, developed and proven in Britain’s hard country — where riding is never easy – it reflects a simple principle: when conditions are toughest, design has to be right.

The result is a bike that’s resilient, adaptable and built to perform, ride after ride.

Highlights

  • 160mm front + 160mm rear of proven Quad-Link 4 suspension, with carefully custom-tuned rear shocks.
  • Uni-directional full carbon fibre frame with geometry adjustment is light and reassuringly strong + factory fitted with RideWrap frame protection.
  • Avinox M2S full-torque (up to 150Nm), full-power (1300W peak) motor with five assistance modes (auto, eco, trail, turbo + boost) + 12A fast charger.
  • SRAM AXS Eagle 1x12 transmission + SRAM Maven Silver four-piston hydraulic brakes.
  • Avinox DP100 OLED top-tube touchscreen display delivers a wealth of customisable information at your fingertips.
  • 800Wh internal battery so you can ride further.
  • DT Swiss Hybrid H1900 29in trail-smoothing wheels front and rear + MX ready.
  • Charge time (800Wh): 80% in 1hr 45mins approx. from empty, and to 100% in 2hrs 23mins approx. with 12A fast charger.
Electric Bikes
Maximum Assisted Speed15.5mph / 25kmh
MotorAvinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Features five power mode settings including Auto and Boost. AXS derailleur powered off motor and featuring SmoothShift
Motor TypeMid motor
Motor Torque150nm
BatteryAvinox 800Wh fixed battery, mounted into the frame by 2x bolts. Removeable for maintenance by removing motor.
ChargerCharger 12A (230V)
DisplayAvinox DPC100 OLED display mounted within the top tube, paired with the discrete bar mounted wireless controller. Also connects to the Avinox Ride smartphone app to give you even more insight and control at your fingertips.
FrameUni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, carbon rear triangle, Shape.it Link V2 and 12mm x 148mm Boost dropouts, RideWrap frame protection kit fitted as standard
ForkFox Float 36 Factory, 160mm travel, 44mm offset with Grip X2 damper custom tuned for Whyte, tapered steerer, 110mm x 15mm Boost, E-thru axle
Rear ShockFox Float X Factory DPS, EVOL LV, 230 x 57.5mm, custom tuned for Whyte
HeadsetFSA custom headset, ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings
HandlebarWhyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
StemWhyte, 35mm extension, 35mm bar bore
Gear ShiftersSRAM AXS rocker pod, right, MMX, 12 speed
Rear DerailleurSRAM S1000 AXS Eagle, 12 speed
ChainSRAM GX T-Type, 12 speed
Cassette/FreewheelSRAM XS 1275, T-Type, 10-52T, 12 speed
ChainsetWhyte 155mm long ISIS crank arms, SRAM direct mount 36T chainring, T-Type
PedalsFibre reinforced composite platform
BrakesSRAM Maven Silver hydraulic disc brake, four piston, sintered metal pads, 220mm/200mm six bolt HS2 rotors
Brake LeversSRAM Maven Silver
Front HubDT Swiss Hybrid H1900, 110mm x 15mm Boost, six bolt
Rear HubDT Swiss Hybrid H1900, 12mm x 148mm Boost spacing, SRAM XD steel driver, six bolt
RimsDT Swiss Hybrid H1900, 29" front and rear
TyresMaxxis Assegai WT, TR, 29 x 2.5in 120TPI, EXO+ Sidewall Protection, 3C MaxxGrip, Dual Compound, folding bead (front); Maxxis Minion DHR 2 WT, TR, 29 x 2.5in 120TPI, Double Down casing, 3C MaxxTerra, Dual Compound (rear)
SaddleWhyte Custom
Seat PostTranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
