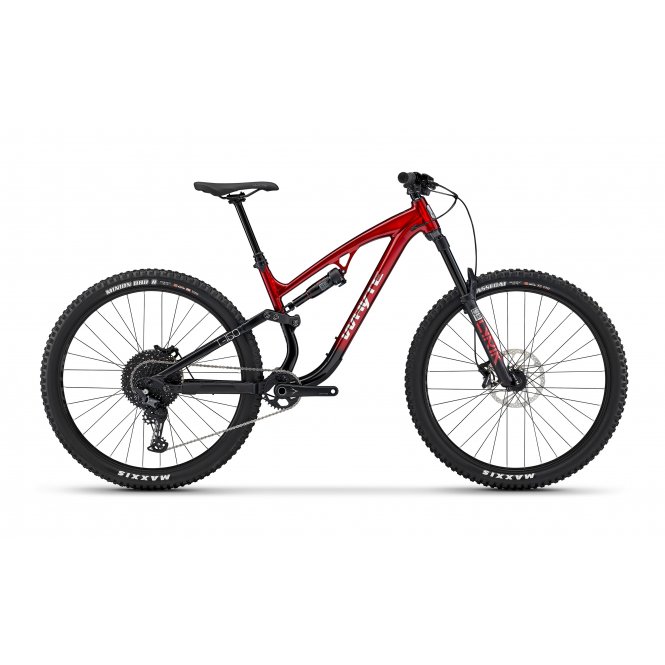

- Whyte 2025 T-160 S Mountain Bike - 2025
Entry level price, top-step performance
Our capable and versatile T-160 S takes the same 'Trail Bike Of The Year' award-winning frameset as its T-160 RS sibling, and blends its big-hitting capability with the best quality for money parts possible. All to deliver you insatiable performance and exceptional value that'll unlock your potential off every send and down every steep. If pushing your envelope tackling techy terrain at speed is what you live for, T-160 S is ready and waiting.
Highlights
- 160mm front and 150mm of rear suspension travel.
- 6061 aluminium SCR frame with ISCG 2 guide mounts + geometry adjustment.
- RockShox Lyrik fork + Deluxe Select+ shock.
- 1x12 speed mechanical transmission (32T chainring x 11-51T cassette).
- 29in chaos taming wheels front and rear.
- Can be converted to MX wheels (29er front, 27.5in rear) for an even more gravity-focused ride.
Light, tough and versatile
The T-160 S's alloy frame is lightweight, tough, dependable and backed with a lifetime frame warranty, lifetime bearing warranty and unique weather sealing features. Our switchable Shape.It link also means you can adjust the geometry from its stock high setting to low to slacken the head angle out by 0.7º and reduce the bottom bracket height by 8mm for an even more aggressive, gravity-focused ride character.
| WT160S2MV3-2 | Frame | 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube, ISCG 2 Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts |
|---|---|---|
| WT160S2MV3-2 | Frame Size | Medium |
| WT160S2MV3-2 | Fork | RockShox Lyrik 29", 160mm Travel, 44mm Offset, DebonAir+, Rush RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate |
| WT160S2MV3-2 | Rear Shock | RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position Compression, 210 x 55mm, custom tuned for Whyte |
| WT160S2MV3-2 | Headset | FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings |
| WT160S2MV3-2 | Handlebar | Whyte Custom 6061 Alloy, 20mm Rise, 35mm, 800mm Wide |
| WT160S2MV3-2 | Stem | Whyte Gravity Stem, 35mm Extension |
| WT160S2MV3-2 | Grips | Whyte Lock-on Enduro Grip |
| WT160S2MV3-2 | Gear Shifters | Shimano M6100 Deore, I-Spec EV, 12 speed, |
| WT160S2MV3-2 | Rear Derailleur | Shimano M6100 Deore, SGS, Shadow Plus, 12 speed |
| WT160S2MV3-2 | Chain | Shimano M6100, 12 speed |
| WT160S2MV3-2 | Cassette/Freewheel | Sunrace CSMZ901, 11-51, Black, 12 speed |
| WT160S2MV3-2 | Chainset | Whyte, Forged 2pcs Cranks, Direct Mount alloy 32T Narrow wide Chainring, 170mm, Boost, 12 speed |
| WT160S2MV3-2 | Number of Gears | 12 |
| WT160S2MV3-2 | Bottom Bracket | BSA, Cartridge Bearings, 73mm |
| WT160S2MV3-2 | Pedals | None |
| WT160S2MV3-2 | Brakes | Front - TRP Trail Evo, 4 Piston with Sintered Metal Pads, 203mm 2.3mm Disc / Rear - TRP Trail Evo, 4 Piston with Sintered Metal Pads, 203mm 2.3mm Disc |
| WT160S2MV3-2 | Brake Levers | TRP Trail Evo |
| WT160S2MV3-2 | Front Hub | Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole |
| WT160S2MV3-2 | Rear Hub | Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole |
| WT160S2MV3-2 | Rims | WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole |
| WT160S2MV3-2 | Tyres | Maxxis Assegai TR 29" x 2.5" 60TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Minion DHR II TR 29" x 2.4" WT 120TPI, EXO+ Sidewall Protection, Dual Compound, Rear |
| WT160S2MV3-2 | Saddle | Whyte Custom, Dual Density, Triple Panel Design |
| WT160S2MV3-2 | Seat Post | Whyte drop.it Post II Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, Shimano Remote Lever |
| WT160S3LV3-2 | Frame | 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube, ISCG 2 Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts |
| WT160S3LV3-2 | Frame Size | Large |
| WT160S3LV3-2 | Fork | RockShox Lyrik 29", 160mm Travel, 44mm Offset, DebonAir+, Rush RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate |
| WT160S3LV3-2 | Rear Shock | RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position Compression, 210 x 55mm, custom tuned for Whyte |
| WT160S3LV3-2 | Headset | FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings |
| WT160S3LV3-2 | Handlebar | Whyte Custom 6061 Alloy, 20mm Rise, 35mm, 800mm Wide |
| WT160S3LV3-2 | Stem | Whyte Gravity Stem, 35mm Extension |
| WT160S3LV3-2 | Grips | Whyte Lock-on Enduro Grip |
| WT160S3LV3-2 | Gear Shifters | Shimano M6100 Deore, I-Spec EV, 12 speed, |
| WT160S3LV3-2 | Rear Derailleur | Shimano M6100 Deore, SGS, Shadow Plus, 12 speed |
| WT160S3LV3-2 | Chain | Shimano M6100, 12 speed |
| WT160S3LV3-2 | Cassette/Freewheel | Sunrace CSMZ901, 11-51, Black, 12 speed |
| WT160S3LV3-2 | Chainset | Whyte, Forged 2pcs Cranks, Direct Mount alloy 32T Narrow wide Chainring, 170mm, Boost, 12 speed |
| WT160S3LV3-2 | Number of Gears | 12 |
| WT160S3LV3-2 | Bottom Bracket | BSA, Cartridge Bearings, 73mm |
| WT160S3LV3-2 | Pedals | None |
| WT160S3LV3-2 | Brakes | Front - TRP Trail Evo, 4 Piston with Sintered Metal Pads, 203mm 2.3mm Disc / Rear - TRP Trail Evo, 4 Piston with Sintered Metal Pads, 203mm 2.3mm Disc |
| WT160S3LV3-2 | Brake Levers | TRP Trail Evo |
| WT160S3LV3-2 | Front Hub | Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole |
| WT160S3LV3-2 | Rear Hub | Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole |
| WT160S3LV3-2 | Rims | WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole |
| WT160S3LV3-2 | Tyres | Maxxis Assegai TR 29" x 2.5" 60TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Minion DHR II TR 29" x 2.4" WT 120TPI, EXO+ Sidewall Protection, Dual Compound, Rear |
| WT160S3LV3-2 | Saddle | Whyte Custom, Dual Density, Triple Panel Design |
| WT160S3LV3-2 | Seat Post | Whyte drop.it Post II Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, Shimano Remote Lever |
| WT160S4XV3-2 | Frame | 6061 Alloy, SCR Aluminium Front Triangle with Tapered Head Tube, ISCG 2 Guide Mounts, Alloy Symmetrical SCR Rear Triangle, Shape.it and 148mm Boost Dropouts |
| WT160S4XV3-2 | Frame Size | Extra Large |
| WT160S4XV3-2 | Fork | RockShox Lyrik 29", 160mm Travel, 44mm Offset, DebonAir+, Rush RC Damper, Fast Black Coating, Tapered Steerer, 110mm x 15mm Boost, Maxle Ultimate |
| WT160S4XV3-2 | Rear Shock | RockShox Deluxe Select + RT, DebonAir, Fast Black Coating, Adjustable Rebound and 2 Position Compression, 210 x 55mm, custom tuned for Whyte |
| WT160S4XV3-2 | Headset | FSA No. 57E Orbit ZS, 1 1/2" Lower and 1 1/8" Upper Sealed Cartridge Bearings |
| WT160S4XV3-2 | Handlebar | Whyte Custom 6061 Alloy, 20mm Rise, 35mm, 800mm Wide |
| WT160S4XV3-2 | Stem | Whyte Gravity Stem, 35mm Extension |
| WT160S4XV3-2 | Grips | Whyte Lock-on Enduro Grip |
| WT160S4XV3-2 | Gear Shifters | Shimano M6100 Deore, I-Spec EV, 12 speed, |
| WT160S4XV3-2 | Rear Derailleur | Shimano M6100 Deore, SGS, Shadow Plus, 12 speed |
| WT160S4XV3-2 | Chain | Shimano M6100, 12 speed |
| WT160S4XV3-2 | Cassette/Freewheel | Sunrace CSMZ901, 11-51, Black, 12 speed |
| WT160S4XV3-2 | Chainset | Whyte, Forged 2pcs Cranks, Direct Mount alloy 32T Narrow wide Chainring, 170mm, Boost, 12 speed |
| WT160S4XV3-2 | Number of Gears | 12 |
| WT160S4XV3-2 | Bottom Bracket | BSA, Cartridge Bearings, 73mm |
| WT160S4XV3-2 | Pedals | None |
| WT160S4XV3-2 | Brakes | Front - TRP Trail Evo, 4 Piston with Sintered Metal Pads, 203mm 2.3mm Disc / Rear - TRP Trail Evo, 4 Piston with Sintered Metal Pads, 203mm 2.3mm Disc |
| WT160S4XV3-2 | Brake Levers | TRP Trail Evo |
| WT160S4XV3-2 | Front Hub | Alloy, Double Sealed Cartridge Bearings, 15mm x 110mm Boost Thru Axle, 31mm Torque Caps, 32 Hole |
| WT160S4XV3-2 | Rear Hub | Alloy, Double Sealed Cartridge Bearings, 12mm x 148mm Boost Thru Axle, 32 Hole |
| WT160S4XV3-2 | Rims | WTB ST i30 TCS 2.0 System, Pinned Joint, Tubeless Ready, 32 Hole |
| WT160S4XV3-2 | Tyres | Maxxis Assegai TR 29" x 2.5" 60TPI, EXO Sidewall Protection, 3C Maxx Terra, Front, Maxxis Minion DHR II TR 29" x 2.4" WT 120TPI, EXO+ Sidewall Protection, Dual Compound, Rear |
| WT160S4XV3-2 | Saddle | Whyte Custom, Dual Density, Triple Panel Design |
| WT160S4XV3-2 | Seat Post | Whyte drop.it Post II Adjust, 30.9mm, M/L 140-170mm Travel, XL 170-200mm Travel, Shimano Remote Lever |
